Elevation and Azimuth of the Sun: Latitude 23°N, Longitude 0°E

The dates are for 2006, computed by my Seasons Applet:
Mar 20, Jun 21, Sep 23, Dec 22

90° N, 0° E
Animation
66.56° N, 0° E
Animation
45° N, 0° E
Animation
23.44° N, 0° E
Animation
0° N, 0° E
Animation

The diagrams are generated by my Elevation & Azimuth Diagram Applet

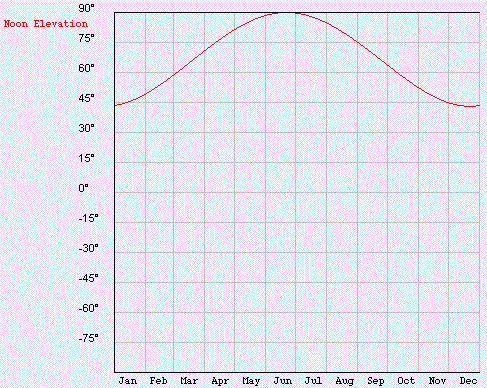

noon elevation = 90° - latitude + declination = 43.1° to 90°

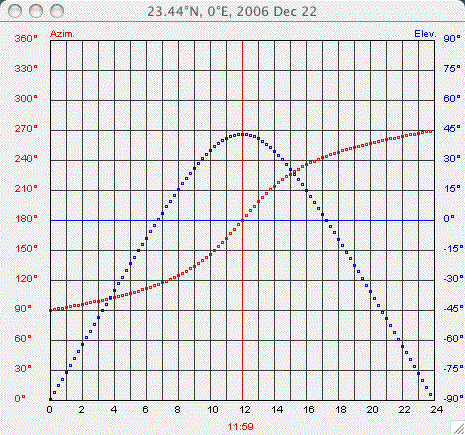

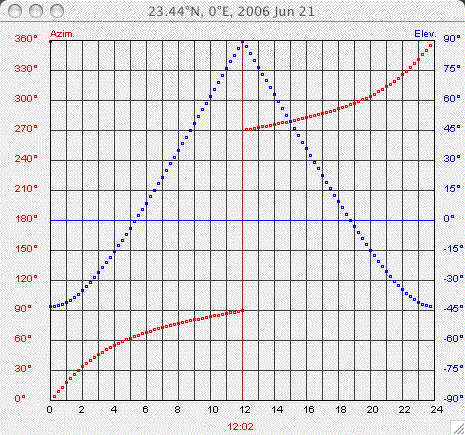

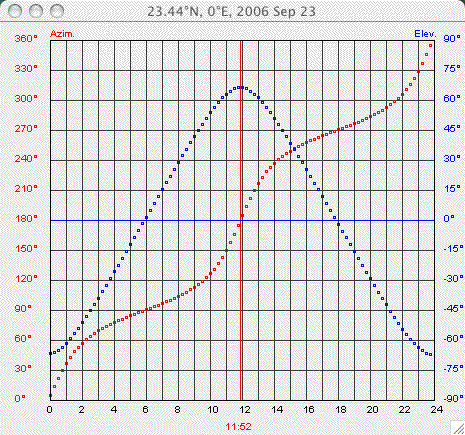

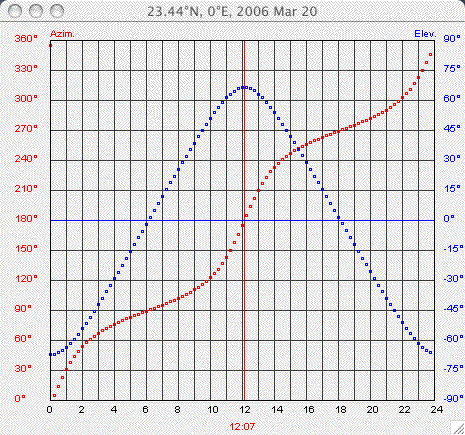

Azimuth and Elevation vs. Time

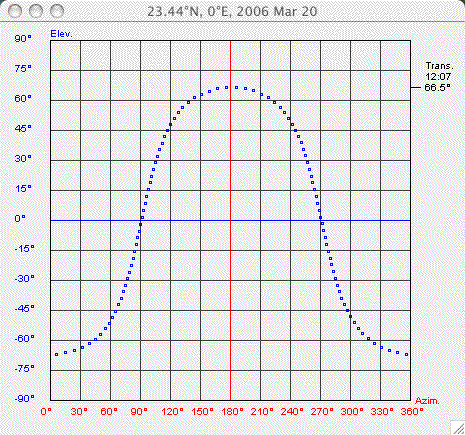

Elevation vs. Azimuth
23.44 ° N

0° E

 Mar 20
23.44 ° N

0° E

 Jun 21

23.44 ° N

0° E

 Sep 23
23.44 ° N

0° E

 Dec 22

(c) 2006 J. Giesen
