Genaille-Lucas Division Applet

Multiplication Applet




Genaille–Lucas rulers (also known as Genaille's rods) is an arithmetic tool invented by Henri Genaille, a French railway engineer, in 1891. The device is a variant of Napier's bones.

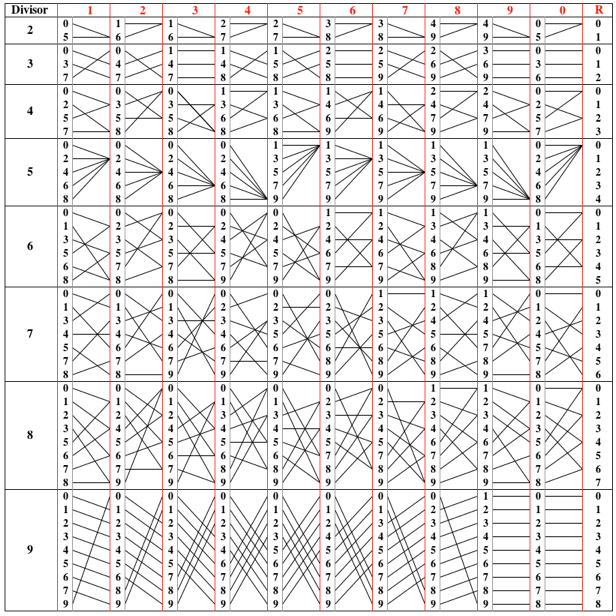

Genaille Lucas division
                  applet

The user can read off the results of simple division problems directly, with no intermediate mental calculations.

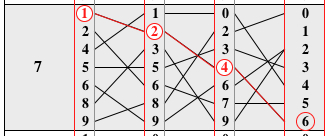

Example: 874 : 7

Start reading the result by the
first number in the column of dividend's first digit, and in the row of the divisor (7),
and follow the lines:

             division by genaille-Lucas rods applet Java
             Genaille-Lucas division applet example

874 : 7 = 124 R 6
